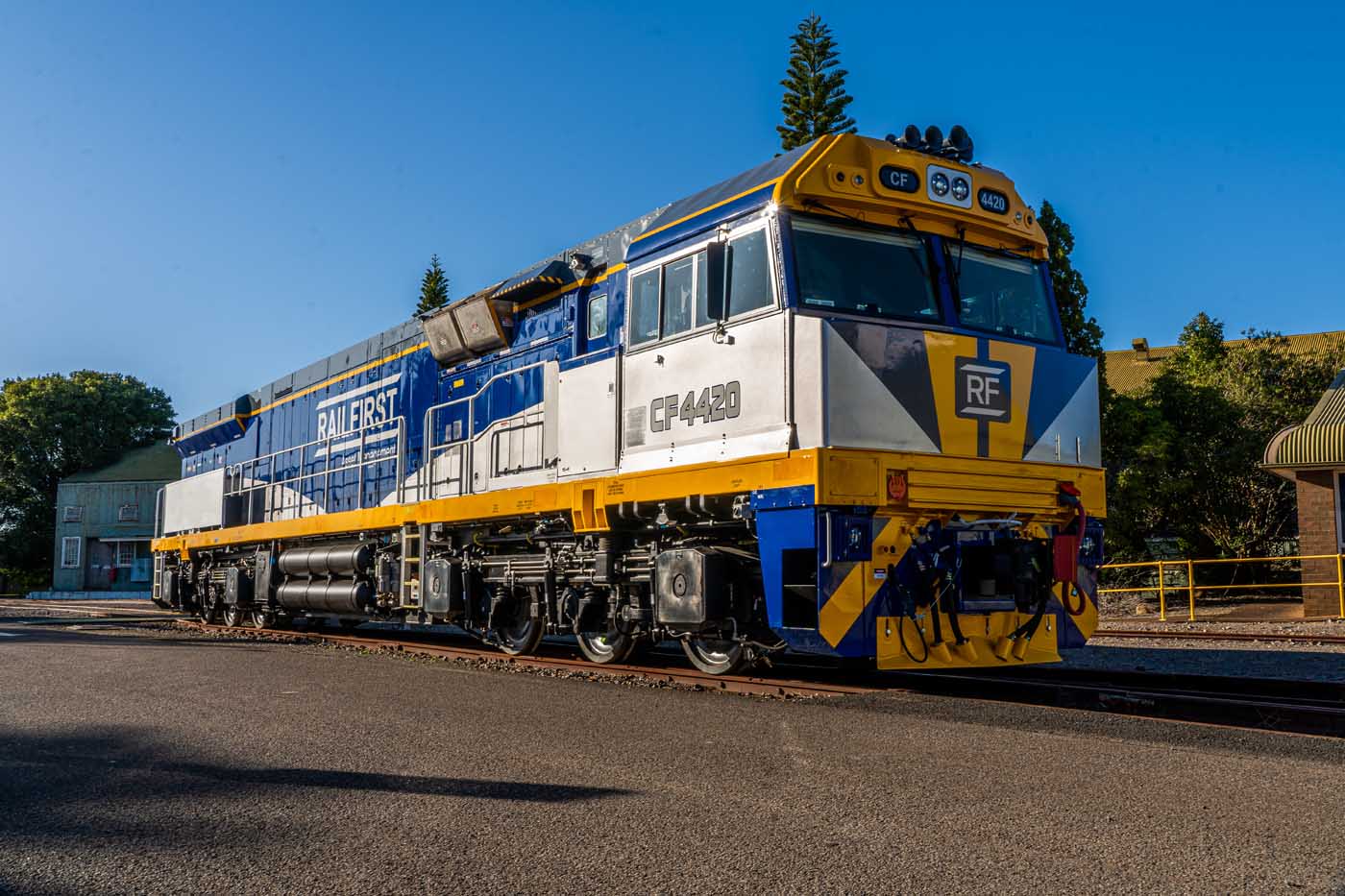

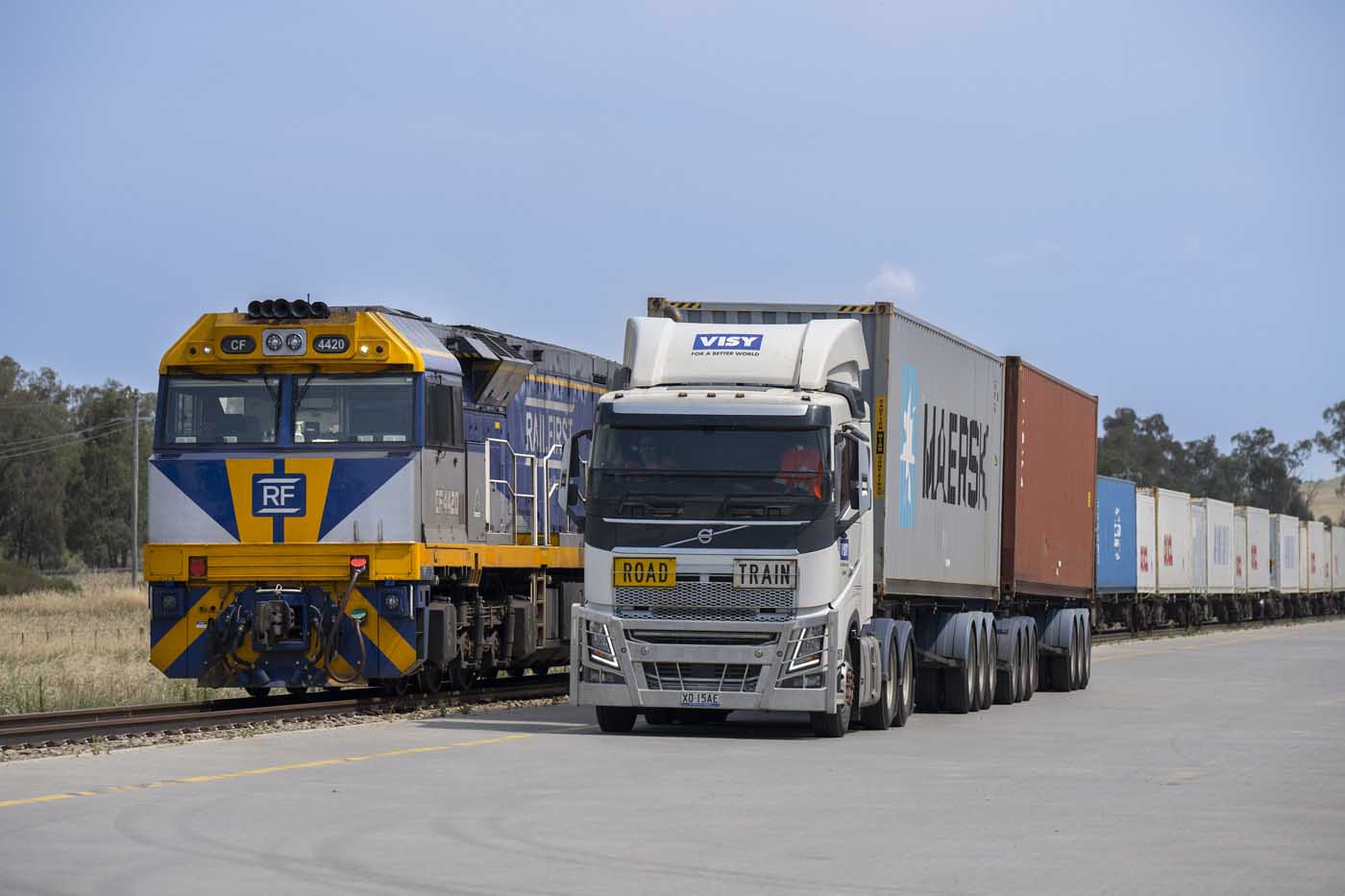

CF Class
14 Class members. Single Cab, Co-Co bogies with a dead weight of 139 t. (13,500 litres of fuel) 16 Cylinder EFI GE engine producing 4,354 hp for a continuous tractive effort of 453 kN at 21km/h.
| Class | CF |
| Manufacturer | UGL limited (GE) |
| Locomotive Numbers | 4401 - 4412, 4420-4423 |
| Year of Manufacture | 2012-13, 2022- |
| Quantity | 16 |
| Locomotive Model | GE C44ACi |
| Engine | GE 7FDL16 EFI |
| Engine RPM | 1,050 Max |
| Wheel Arrangement | Co-Co |
| Wheel Diameter | 1,067 mm |
| Maximum Gross Power | 3,355 kW/ 4,354 hp |
| Alternator | GE GMG192 |
| Traction Motors | GE 5GEB30 |
| Lube Oil Capacity | 1,552 L |
| Cooling Water Capacity | 1,438 L |
| Control System | GE CCA |
| Air Brake | Wabtec - FastBrake Electronic Air Brake (EAB) |
| Dynamic Brake | 310 kN (5-7 km/h) |
| Starting Tractive Effort | 600 kN |
| Adhesion | 33% |
| Gear Ratio | 85:16 |
| Air Conditioning | Fitted |
| Toilet | Fitted |
| Other | Wabtec distributed power, Wabtec ECP braking and Loco Video Camera recording. |
| Live Weight | 139 tonnes (13,500 L fuel) |
| 134 tonnes (7,300 L fuel) | |
| Drawbar Capacity | 2.20 MN |
| Axle Load: Maximum | 23.16 tonnes |
| Speed | 115 km/h |
| Track Gauge Options | Standard (1,435 mm) |
| Fuel Capacity: Max | 13,500 L |
| 22.0 m |
